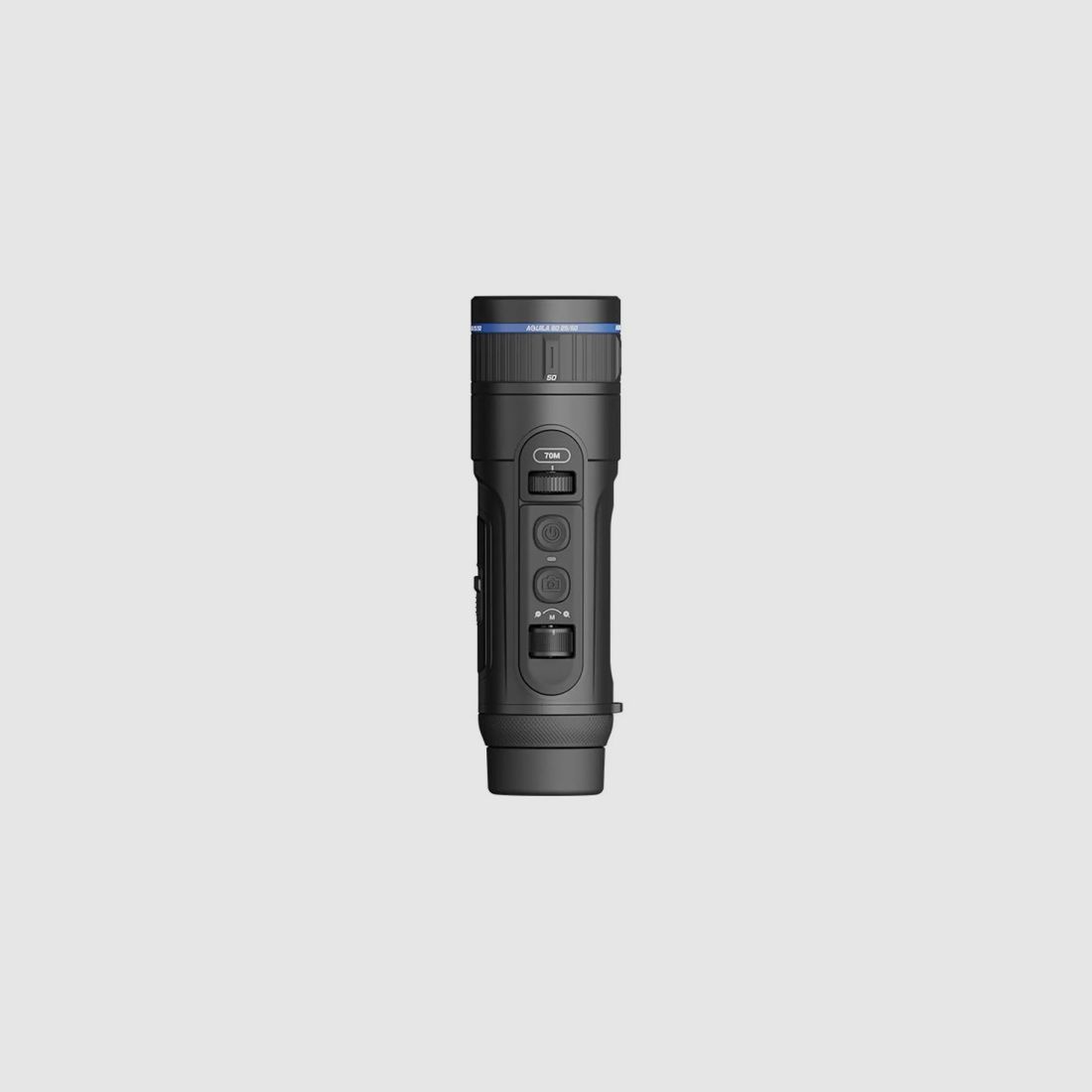

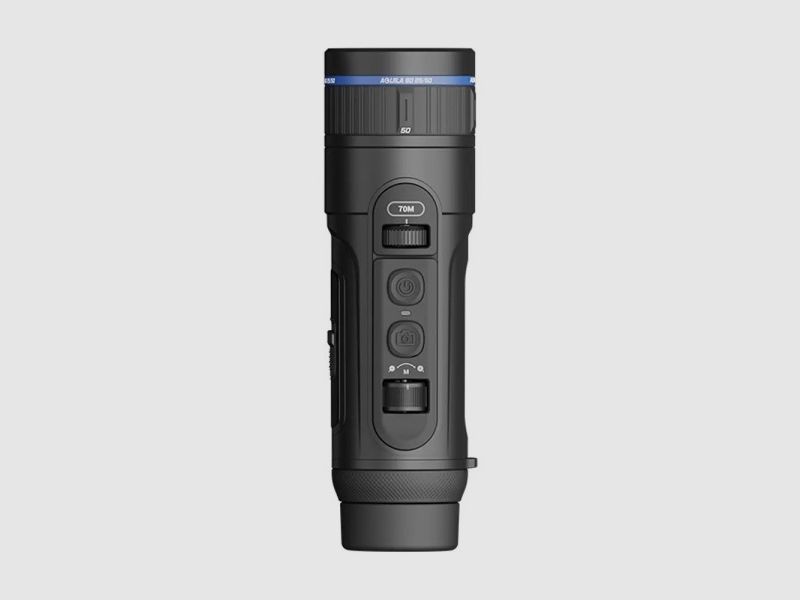

| Model | Aquila 325 | Aquila 335 | Aquila 3D 19/38 | Aquila 3D 25/50 | Aquila 350LIIR | Aquila 635 | Aquila 6D 19/38 | Aquila 6D 25/50 | Aqulia 650LIIR |
| Main Characteristics | |||||||||
| Detector | Uncooled Vox | ||||||||
| Resolution | 384x288 | ||||||||
| Frame rate | 50HZ | ||||||||
| Pixel | 12μm | ||||||||
| Spectral range | 8-14μm | ||||||||
| NETD | 25mK | ||||||||
| Optical Characteristics | |||||||||
| Objective lens | 25mm | 35mm | 19mm/38mm | 25mm/50mm | 50mm | 35mm | 19mm/38mm | 25mm/50mm | 50mm |
| Magnification | 2.4x | 3.3x | 1.8x-3.7x | 2.4x-4.8x | 4.8x | 1.9x | 1.0x-2.0x | 1.4x-2.7x | 2.7x |
| FOV(H×V), m @100m | 18.4×13.8 | 13×9.9 | 12.1×9.1 / 24.3×18.2 | 9.2×6.9 / 18.4×13.8 | 9.2×6.9 | 22×17.5 | 20.2×16.2 / 40.4×32.3 | 30.7×24.6 / 15.35×12.3 | 15.35 ×12.3 |
| Close-up range | 2m | ||||||||
| Dioptre adjustment | ±5D | ||||||||
| Functions | |||||||||
| Smooth zoom | 2.4x-10x | 3.3x-13.8x | 1.8x-7.5x / 3.7x-15.4x | 2.4x-10x / 4.8x-20x | 4.8x-20x | 1.9x-10x | 1.0x-5.2x / 2.0x-10.4x | 1.4x-7.3x / 2.7x-14x | 2.7x-14x |
| Palettes | 8 | ||||||||
| Audio recording | YES | ||||||||
| Firmware update via APP | YES | ||||||||
| Photo/Video | YES | ||||||||
| Display | |||||||||
| Type | OLED | ||||||||
| Resolution | 1024x768 | ||||||||
| External video | WIFI | ||||||||
| Built-in memory | 32GB | ||||||||
| Power Supply | |||||||||
| Battery | Dual Battery | ||||||||
| External power supply | 5V USB-C | ||||||||
| Operating time (at t=22°C) | 10h | ||||||||
| Physical Characteristics | |||||||||
| Weight (without external battery) | ≤540g | ≤540g | ≤570g | ≤600g | ≤560g | ≤540g | ≤570g | ≤600g | ≤560g |
| Dimension | ≤φ61x179mm | ≤φ61x179mm | ≤φ61x205mm | ≤φ61x205mm | ≤φ61x193mm | ≤φ61x179mm | ≤φ61x205mm | ≤φ61x205mm | ≤φ61x193mm |
| Environmental Compatibility | |||||||||
| Ingress protection rating | IP67 | ||||||||
| Operating temperature | 30 | ||||||||
| Storage temperature | 30 | ||||||||
| Laser Rangefinder (Only available in Aquila 350LIIR and 650LIIR) | |||||||||
| Safety class for laser equipment according to IEC 60825-1:2014 | / | 1 | / | 1 | |||||
| Measuring range | / | 5-1200m | / | 5-1200m | |||||
| Measurement accuracy | / | ± 1m | / | ± 1m | |||||
